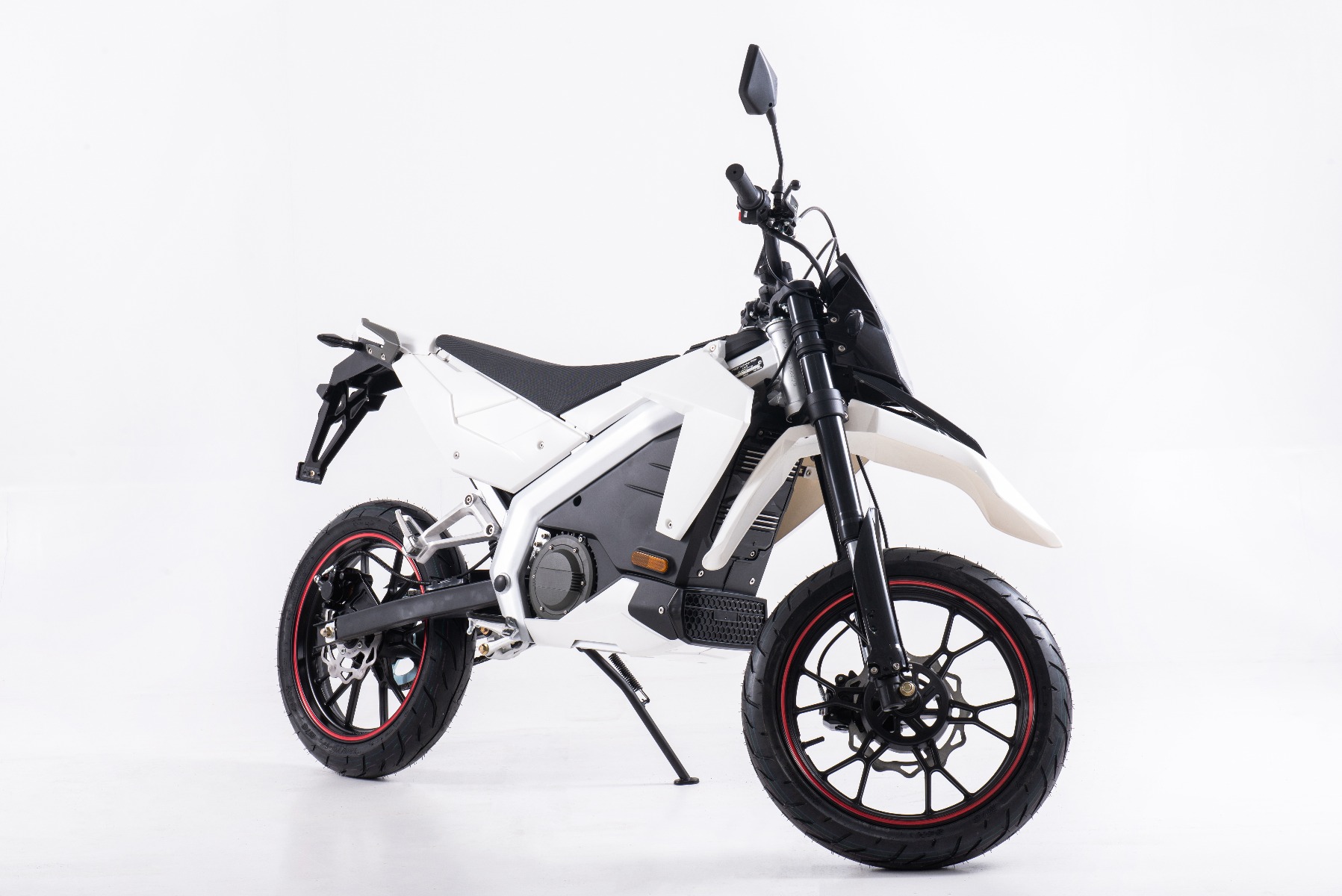

Horwin Ranger elektrisk moped rød
39 990 kr 49 988 kr inkl. MVA
With a peak power of 5kW, a top speed of 45 km/h throttled and acceleration values comparable to a 125cc, nothing stands in the way of quiet driving fun with the HORWIN RANGER STREET on the road.
The removable batteries can be recharged in the home or office. With the innovative Keyless-Go system, the vehicle can also be driven without inserting the key.
|
Series |
HORWIN Ranger |
|
|
Battery |
Battery Concept |
Lithium battery |
|
Battery Capacity |
72V/26Ah (can put two batteries) |
|
|
warranty |
Two years |
|
|
Motor |
Brand |
Independent R&D |
|
Rating Power |
3800W |
|
|
Performan ce (FactorySetting) |
Max. Speed (GPS) |
80KM/H |
|
Distance Range |
70KM @45KM/H (140KM with two batteries) |
|
|
Climbing Capacity |
≥15°B |
|
|
Basic Info. |
Front rim |
2.50–17 Aluminium alloy wheel(with road tire) J21*1.6 Aluminum alloy outer ring with wirewheel(with offroad tire) |
|
Rear Tyre |
120/70–17(Road tire) 4.10–18(offroad tire optional) |
|
|
Brakes |
Fr.240mm Disc brake/ Re. 210mm Disc brake |
|
|
Front ShockAbsorber |
Hydraulic (Absorber adjustable spring preload) |
|
|
Rear ShockAbsorber |
Hydraulic (Absorber adjustable rebound damping) |
|
|
Controller |
FOC |
|
|
Display |
LCD |
|
|
Max loading capability |
200KG |
|
|
Start system |
Keyless Start |
|
|
Color |
White backlight (Can be customized) |
|
With a peak power of 5kW, a top speed of 45 km/h throttled and acceleration values comparable to a 125cc, nothing stands in the way of quiet driving fun with the HORWIN RANGER CROSS over woods and meadows or with the RANGER STREET on the road.
The removable batteries can be recharged in the home or office. With the innovative Keyless-Go system, the vehicle can also be driven without inserting the key
| Vekt | 100.000000 kg |
|---|
