Varenummer: KAMA KDE 20

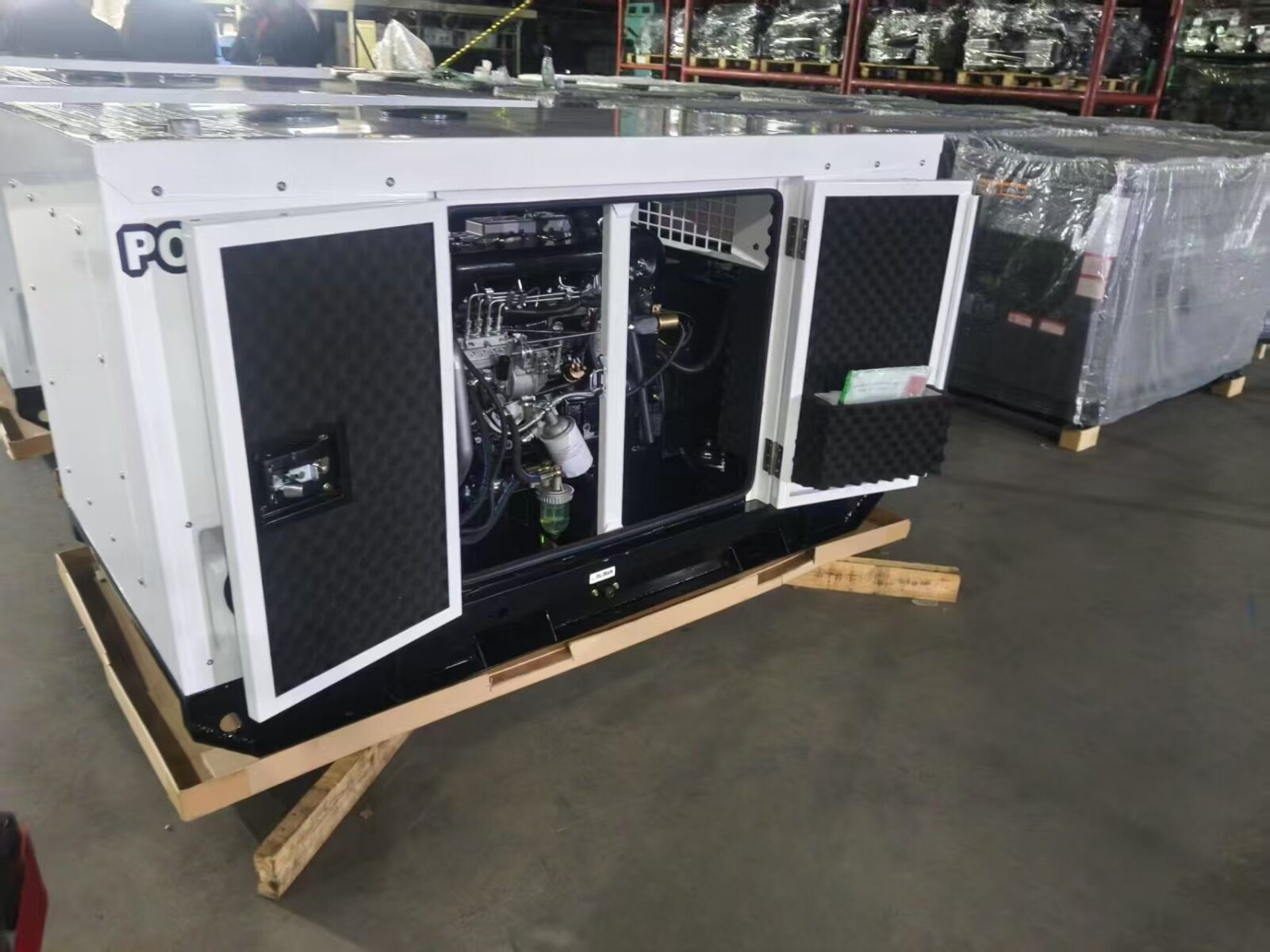

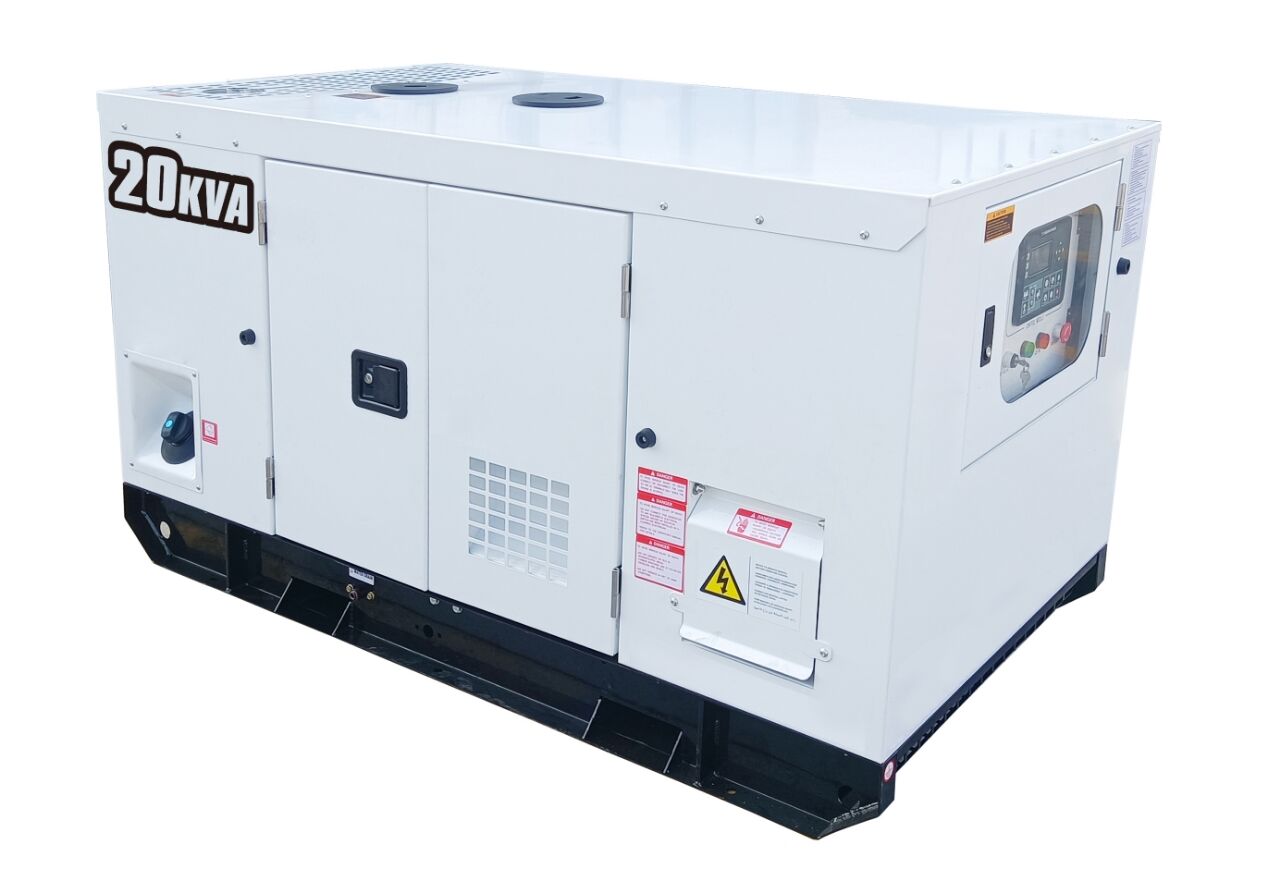

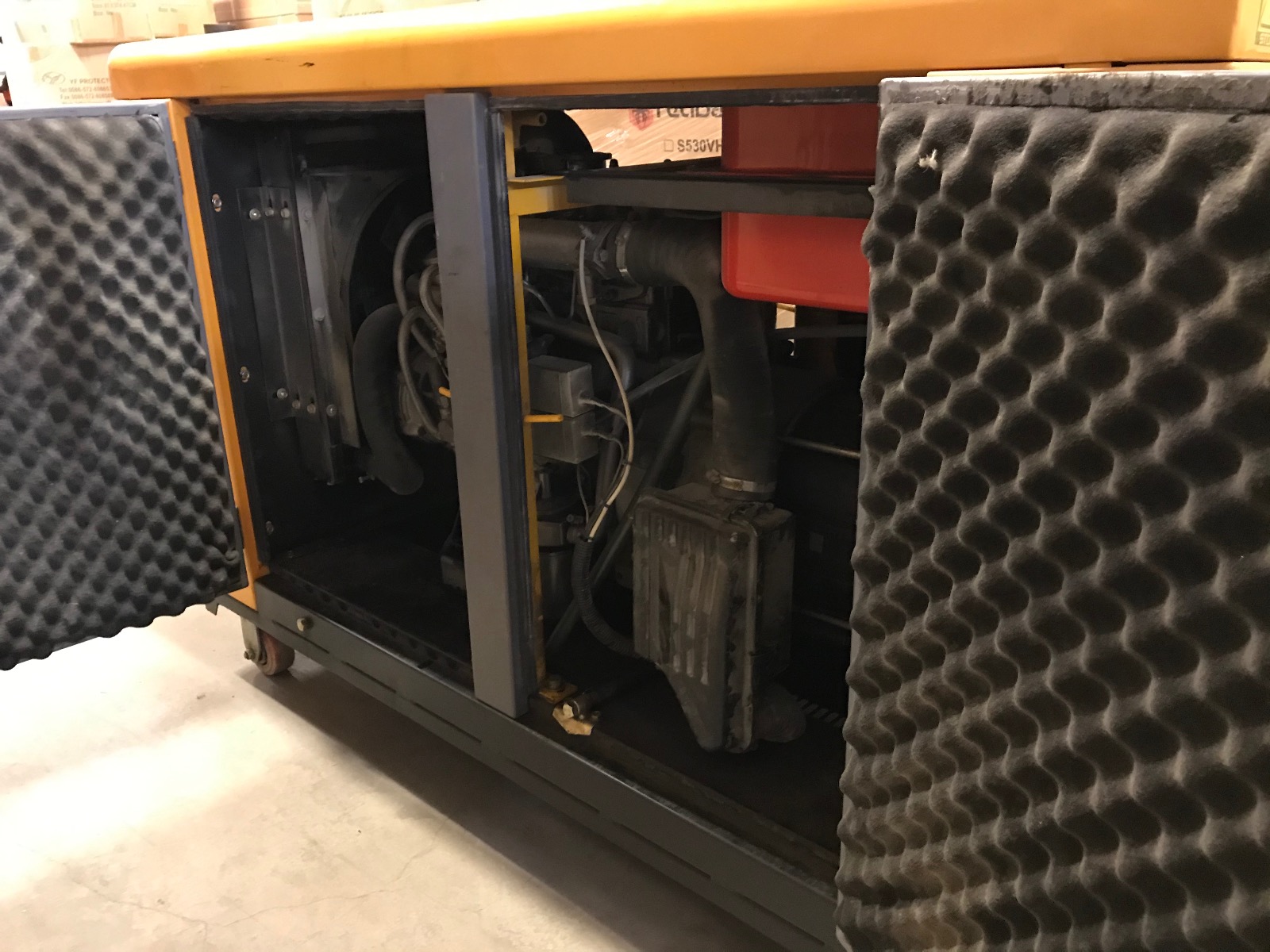

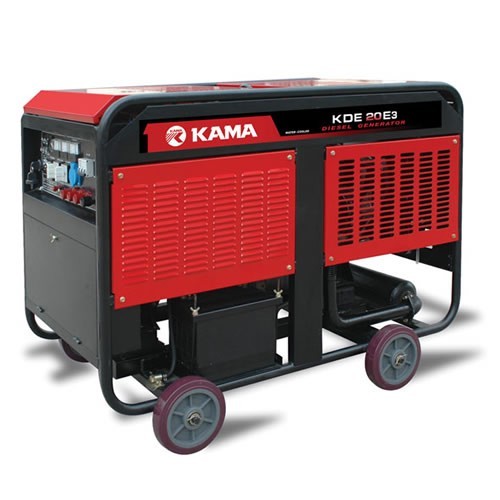

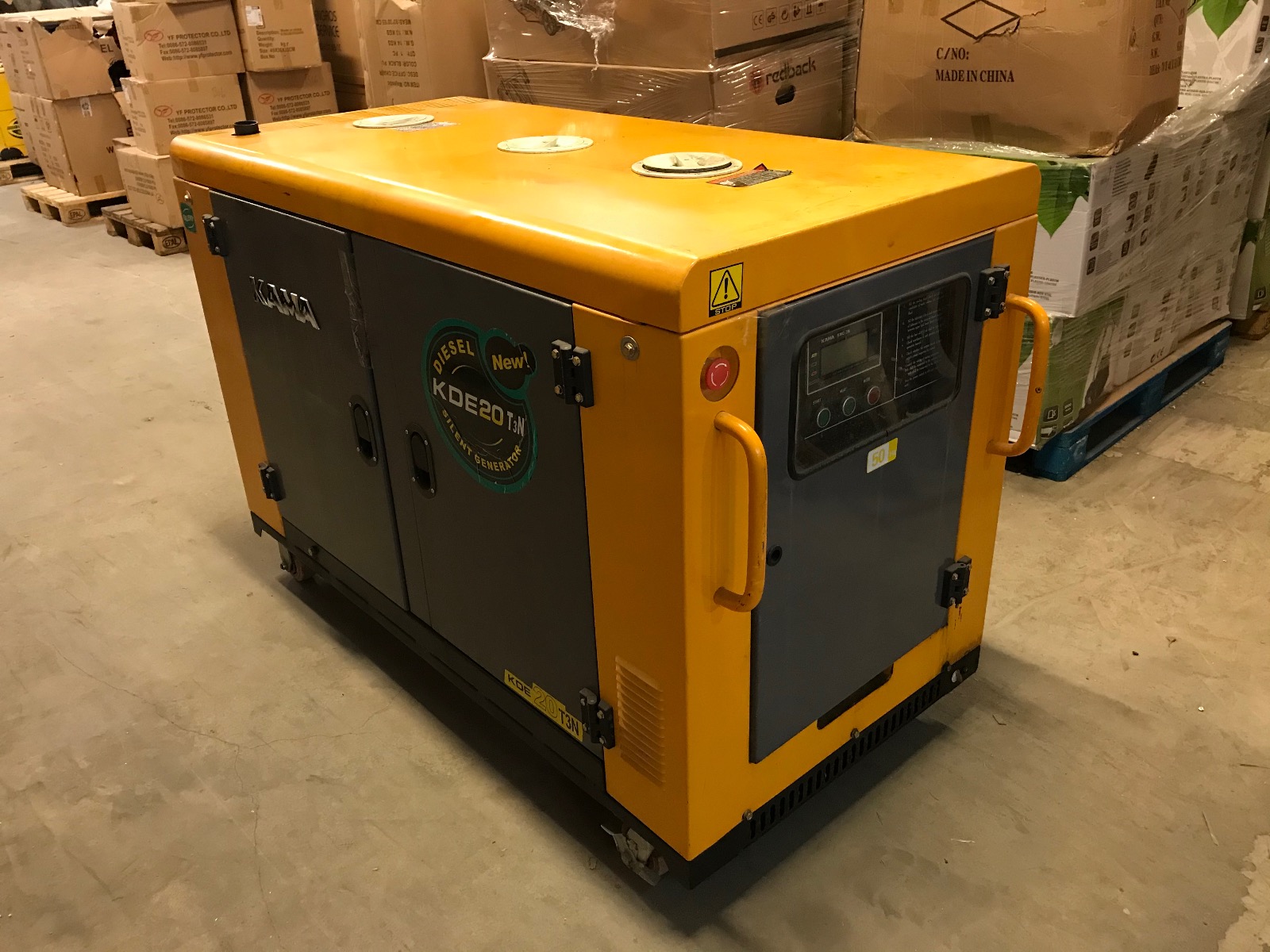

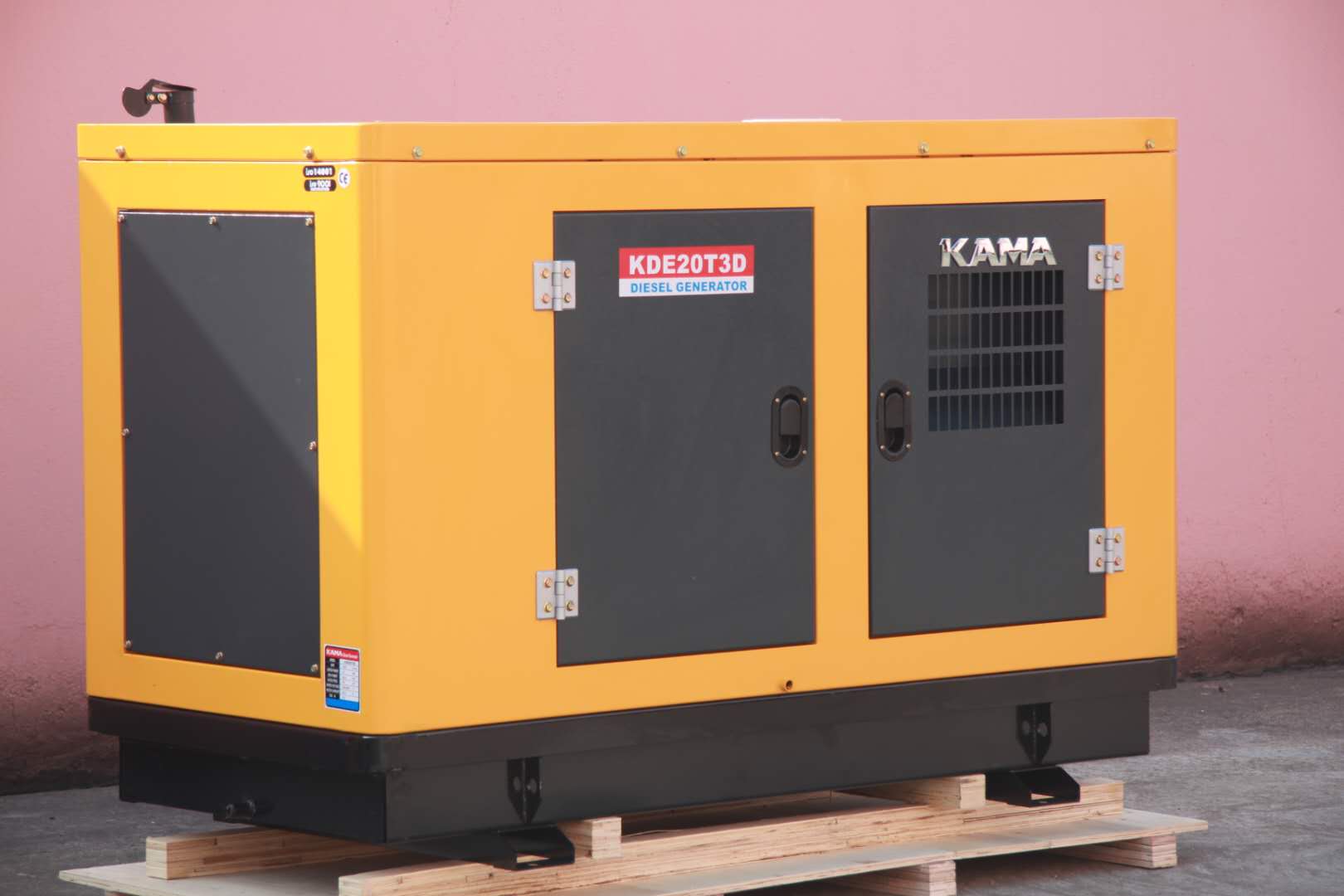

KAMA DIESEL AGGREGAT KDE 20 16,5 KW

47 992.00 kr 59 990.00 kr inkl. MVA

Max output power(KW) 16.5 16.5
Rated otation speed(rpm) 3000 3600
Power factor(cos) 0.8(Applied to KVA)
Phase number Three phase
Excitation mode Self-excitation and constant voltage(AVR)
Overall dimension(LxWxH)[mm(in)] E:1270x830x940(50.00×32.68×37.01)T:1660x730x1020(65.35×28.74×40.16)
Dry weigt[kg(ibs.) E:360(792),T:455(1001)
Structure type E:Open-frame type T:Silent type
Engine model KM380G
Rated power[kW(Hz)/rpm] 21(28.56)/3000.21(28.56)/3600
Engine type Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine
Bore*stroke[mm(in)] 80×90(3.15×3.54)
Compression ratio 18:1
Total displacement[L(cu.in)] 1.357?82.81?
Fuel consumption at full load[g(ml)/kW.h] <245?291?
Starting system 12V electric starter
Fuel 0#?summen?-10#(winter)light diesel oil
Cooling system Forced water-cooled circulation
Lube Capacity[L(gal.)] 38(8.36)
Lube LECD grade 15W40

+ -

KAMA DIESEL AGGREGAT KDE 20 1 fase 230v og 3 fase 400v

Rated frequency(Hz) 50 60
Rated voltage(V) 400/230 400/230
Rated current(A) 21.7 21.7
Rated output power(KW) 15 15
Max output power(KW) 16.5 16.5
Rated otation speed(rpm) 3000 3600
Power factor(cos) 0.8(Applied to KVA)
Phase number Three phase
Excitation mode Self-excitation and constant voltage(AVR)
Overall dimension(LxWxH)[mm(in)] E:1270x830x940(50.00×32.68×37.01)T:1660x730x1020(65.35×28.74×40.16)
Dry weigt[kg(ibs.) E:360(792),T:455(1001)
Structure type E:Open-frame type T:Silent type
Engine model KM380G
Rated power[kW(Hz)/rpm] 21(28.56)/3000.21(28.56)/3600
Engine type Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine
Bore*stroke[mm(in)] 80×90(3.15×3.54)
Compression ratio 18:1
Total displacement[L(cu.in)] 1.357?82.81?
Fuel consumption at full load[g(ml)/kW.h] <245?291? Starting system 12V electric starter Fuel 0#?summen?-10#(winter)light diesel oil Cooling system Forced water-cooled circulation Lube Capacity[L(gal.)] 38(8.36) Lube LECD grade 15W40

Vekt 1000.000000 kg
