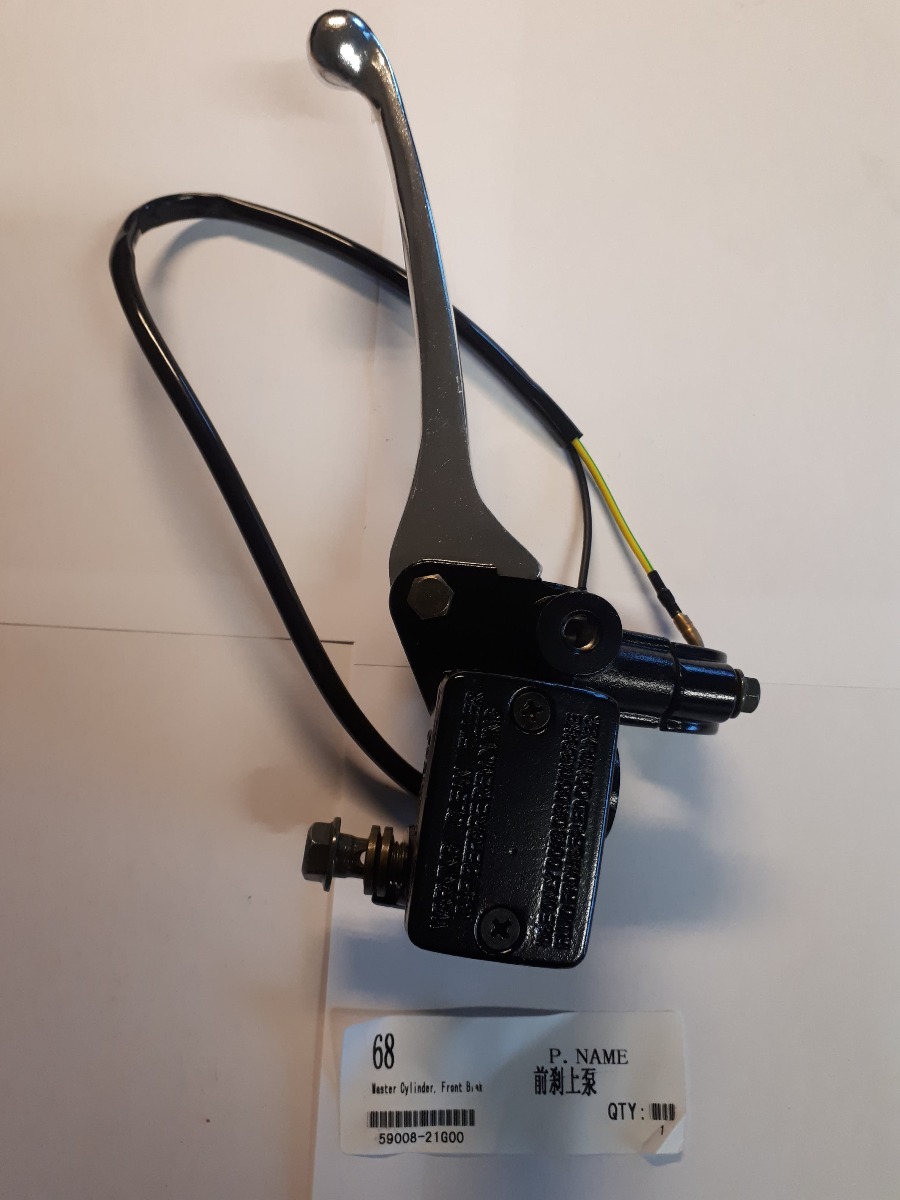

Master Cylinder, Front Brake
Part# 59008-21G00
Relaterte produkter
Right Handle Switch Assy skyteam 50cc
Part # 57300-21G00-010
THIS ARTICLE IS SUITABLE FOR THE FOLLOWING VEHICLES:
V125 Special
V50 Special
V125 Special Flex
V50 Special Flex
V50 Special – 25km/h
V50 Special Flex – 25km/h
V200 Special
V200 Special Flex
Tail Lamp Assy (Ellipse) skyteam 50cc
Part # 35710-Y1000
Klassiska Bongo från främsta tillverkaren av modellen. Nu är den godkänd enligt dom nya avgaskraven Euro4. Skyteam Bongo är utrustad med bla. ledblinkers, digital instrument, led strålkastare, svartlackerad motor samt skärmar och avgassystem i crome. Vi tar hem Bongo 125 i gul färg.
Specs:
MODEL | ST125-8A Euro4 | |
ENGINE | ENGINE TYPE | Single cylinder, 4 stroke, Air-Cooled, 2 valve, Horizontal, SOHC |
BORE*STROKE mm | Ø52.4×57 | |
DISPLACEMENT ml | 124,0 | |
COMPRESSION RATIO | 9.5:1 | |
MAXIMUM POWER KW/(r/min) | 5.8/7300 | |
MAXIMUM TORQUE Nm/(r/min) | 8.8/5000 | |
MAXIMUM SPEED km/h | 90 | |
ECONOMIC FUEL CONSUMPTION l/100km | 2,1 | |
MINIMUM UNLOADED STABLE SPEED r/min | 1400±100 | |
IGNITION TYPE | ECU | |
STARTER SYSTEM | Kick&Electric | |
LUBRICATION SYSTEM | Pressure and splash lubrication | |
EFI TYPE | Single point injection + closed loop control | |
OBD INTERFACE | 16-pin | |
CLUTCH | Wet, multiple disc(manual clutch) | |
TRANSMISSION | International 4 speed | |
SPARK PLUG | NGK/CR6HSA | |
CHASSIS | RIM | 10″ mag alloy rim |
RIM SIZE F&R | F:2.5*10 R:2.5*10（10″） | |
FRONT TIRE | 3.5-10 / 100/90-10 | |
REAR TIRE | 3.5-10 / 100/90-10 | |
BRAKE SYSTEM | Front and rear disc brakes(CBS) | |
FRONT SUSPENSION SYSTEM | Telescopic Forks | |
REAR SUSPENSION SYSTEM | Spring & Oil | |
FUEL LEVEL GAUGE | MAGNETIC INDUCTION | |
DIMENSIONS | LENGTH x WIDTH x HEIGHT mm | 1400×660×900 |
WHEELBASE mm | 970 | |
MIN. GROUND CLEARANCE mm | 185 | |
HANDLEBAR HEIGHT mm | 890 | |
SEAT HEIGHT R mm | R:780 | |
NET WEIGHT kg | 81 | |
FUAL TANK CAPACITY L | 8,5 |
Front Brake Lever (new type) skyteam 50cc
Part# 59286-21G00
